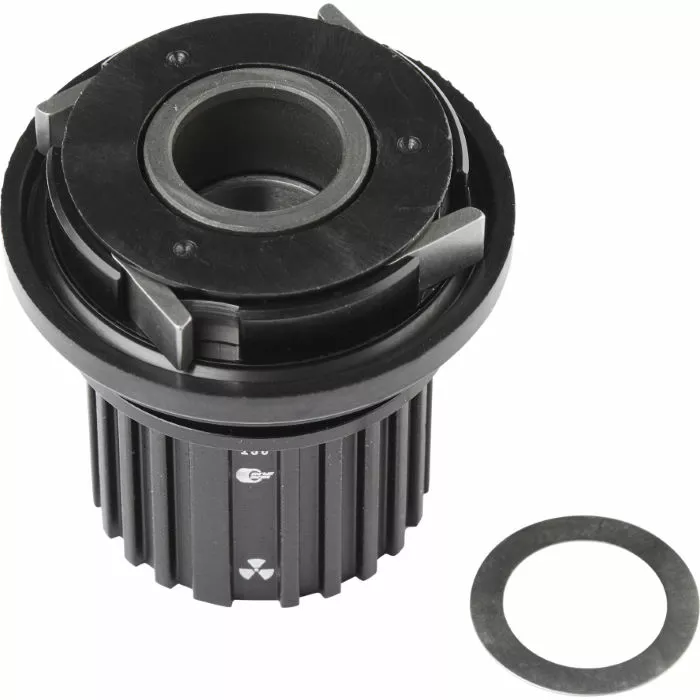

Nukeproof Neutron V2 Freehub Body 36t

The Nukeproof Neutron V2 Freehub Body 36t is designed for use with Nukeproof Neutron V2 hubs.

A new hub seal and bushing is supplied with Nukeproof freehubs. To avoid damage to the hub seal, turn the freehub anti-clockwise as you fit.

Please Note: The new hub seal will be fitted to the freehub for transport purposes. This needs to be removed from the freehub by pressing the pawls BEFORE fitting the freehub.

Options:
Shimano HG

Shimano Microspline

SRAM XD

If you have a HG / XD hub and want to convert to microspline, you will need Nukeproof’s microspline conversion kit which can be found here.

For step-by-step fitting instructions click here.

Freehubs:
Installation Instructions:

1. Remove driveside end cap

2. Pull off old freehub turning anticlockwise as you pull

3. Check hub seal for damage, if it is damaged remove the seal

4. If seal was removed, press on new seal

5. Apply grease hub ratchet ring

6. Apply thin grease to freehub pawls & springs then push onto hub shell turning anticlockwise

7. Refit driveside end cap

Topfunktioner:

• Material: Alloy
• Use: MTB
• Pawl: 4-pawl
• Hub Compatibility: Nukeproof Neutron V2
• Cassette Compatibility: Shimano HG – 9, 10, 11 and 12 Shimano HG spline cassettes; SRAM XD – SRAM Eagle XD Cassettes or Shimano Microspline – Shimano microspline cassettes
• Points of Engagement: 36
• Part Number: Shimano HG Freehub: NUKNEUV236TFHHG; SRAM XD Freehub: NUKNEUV236TFHXD; Shimano Microspline Freehub: NUKNEUV236TFHMS
• This freehub is only compatible with Nukeproof Neutron V2 hubs
