LifeLine Internal Cable Routing Tool

The LifeLine Internal Cable Routing Tool takes away the stress of feeding cables through frames. With a series of magnets, guide cable and adapters the tool allows you to feed inner cables, hydraulic hose and Di2 cable through your frame.

Feed the guide cable through your frame using the magnet on your multi tool and the magnet on the guide cable to pass from exit to insert point. Then attach the correct asaptor from the multi tool to your cable that requires routing. Attach the magnet adaptor to this cable and connect the guide cable to the routing cable. Then simply drag the routing cable back through the frame by pulling on the guide cable.

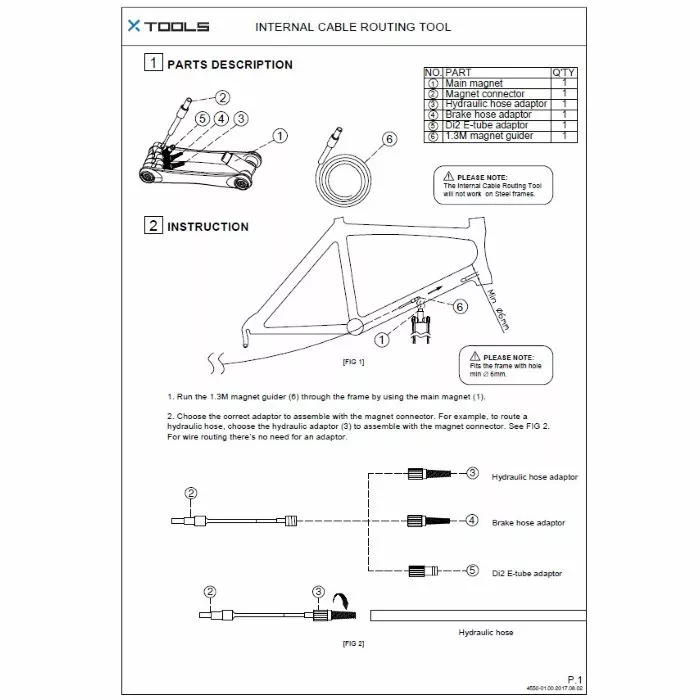

Sound tricky? It’s really not. Check out the instructions added to the images and soon we’ll make a video demonstrating how to use the tool!

Topfunktioner:

• Kit includes:
• Main magnet
• 1.3m guide cable
• Hydraulic hose adaptor
• Brake hose adaptor
• Di2 E-Tube adaptor
